USB Reader (125/134kHz)

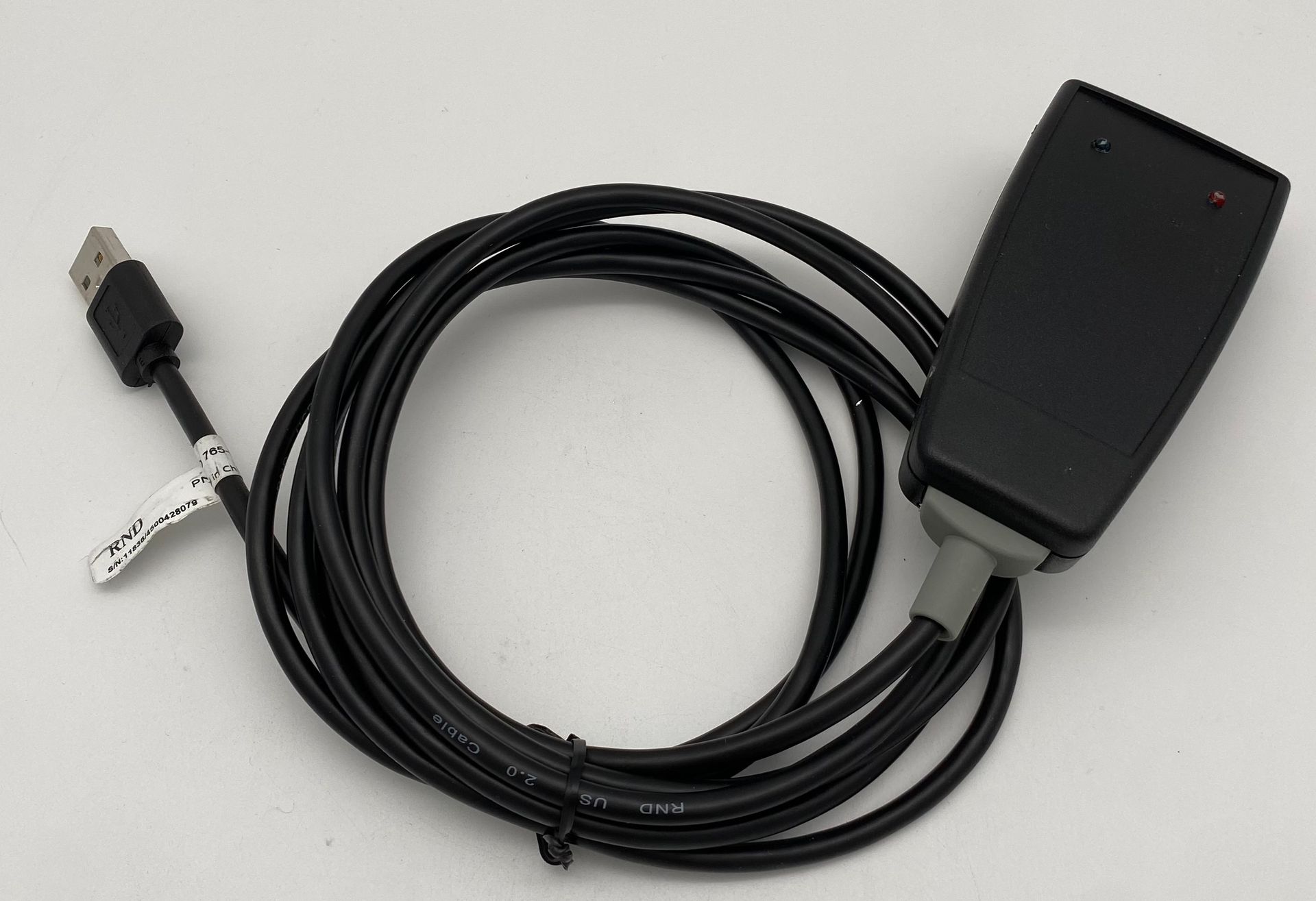

IdentSystem AB is a small, portable USB LF reader as a complement to our IDEAL125 for fixed montage. USB125 is ideal for control processes in laboratory settings or inventory purposes. It is also well used in service situations as a portable reader in an environment where our IDeal125 reader is fixed installed and where you need a mobile unit for checking readers, inventory, or confirmation of reading data.

It is often used in maintenance: In manufacturing industry tools can be tagged (with for example a small glass tag) to track wear, sharpening and maintenance of press- or stamping tools, drills etc.

USB125 will also work perfectly with our LF RFID tagged Cable ties form HellemannTyton.

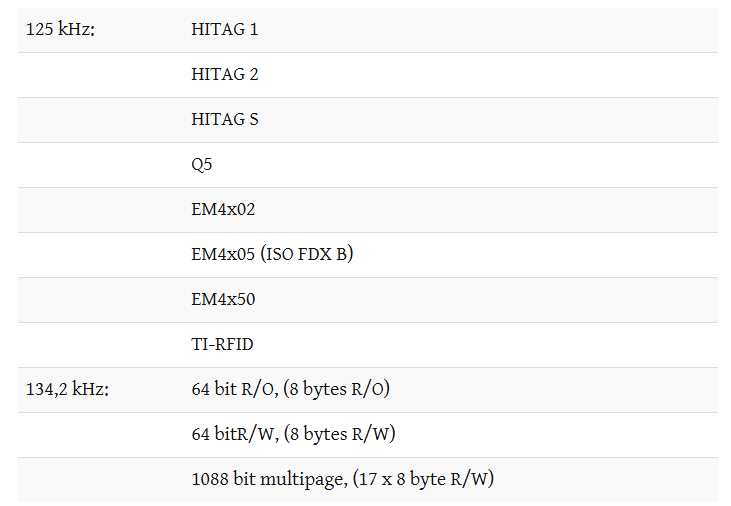

Below is an overview of supported tags:



Features


  • Standard interface: USB 2.0
  • Supported standards: ISO11784, ISO 11785 and ISO18000-2
  • Supported tags (125kHz): Hitag 1, Hitag 2, Hitag S, Q5, EM4x02, EM4x05 (ISO FDX B), TI-RFID
  • Supported tags (134,2 kHz): 64 bit R/O, 64 bit R/W, 1088 bit Multipage
  • USB125 returns a code for the tag type before its serial number, when reading a tag
