Paper Industry

Our products can be found at many different paper mills around the world. Some of our customers within paper industry:

RFID

Stora Enso-Sweden
Stora Enso-Finland
Stora Enso-China
Stora Enso-Belgium
Port of Lubeck
Norske Skog-Norway
Billerud-Sweden
Antalis-Spain
Sund Birsta - Sweden

EVS barcode readers

UPM-Finland
Stora Enso-Sweden
Schwartz Production-Germany
Port of Gothenburg-Sweden
Stora Enso-Finland
SCA-Holland
Setra group-Sweden
Mondi Paper-Sweden
Model Paper-Germany
Lindhe Truck-Sweden
Sylvamo-Sweden
PSA-Belgium

More references available on request.

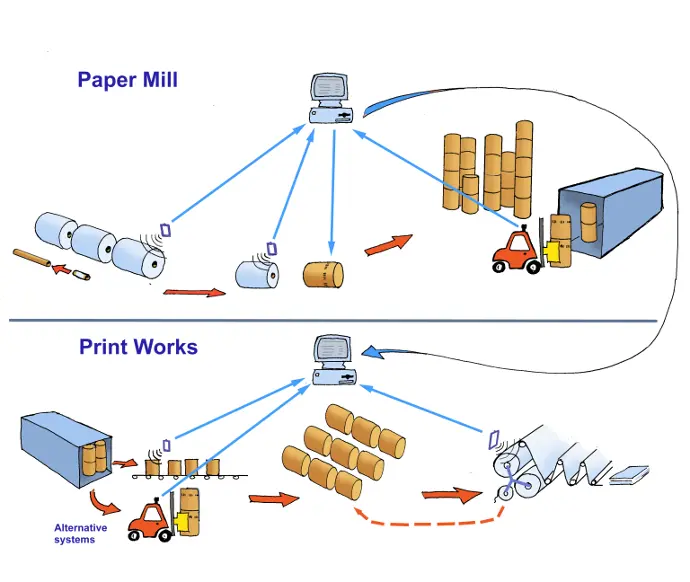

Our RFID products are used both in the production process as well as in different logistical solutions, both internal and external.

Our code readers have the ability to read awkward codes such as ink printed on a surface, which is not uncommon in the timber, paper/pulp industries.

Application Example

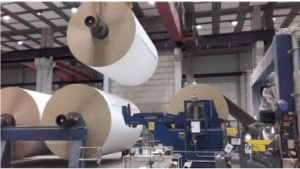

RFID-based Tambour-ID

Ident System AB has in the past years successfully installed well over 30 systems and more are on the way. The customers have greatly appreciated the quick and easy installation and the good performance of the systems.

Tambour identification at paper mills has in the past mostly been done using Microwave-based systems. That hardware is now getting to a point where it needs to be replaced in order to warrant a safe and trouble-free operation in the mills. Since a few years, Ident System AB offers an economic and well-proven replacement system based on LF-RFID (134,2 kHz) instead of the microwave systems.

The system consists of one or several Ideal134 reader connected to the present Mill Executive System and will keep track of Tambour-ID, orientation and acceptable destinations. The Tambour-ID system easily integrates with various MES e.g. Honeywell Optivision, ABB Automation, Paperline and similar systems. For systems that communicate via the older ZIOX interface we have developed our ZIOX-host controller (ZIOX-HC) to automatically poll and convert the signal between interfaces.

IdentSystem AB also provide antennas in standard and customises sizes and water classifications. For those situations when proximity to metal or other interference doesn’t match the factory trim of the antenna, the Antenna Tuning Unit, ATU134 can be connected between the antenna and Ideal134 reader. The ATU134 is available with or without tuning indicator.
